Home > Products > DIN41612 Eurocard Connector

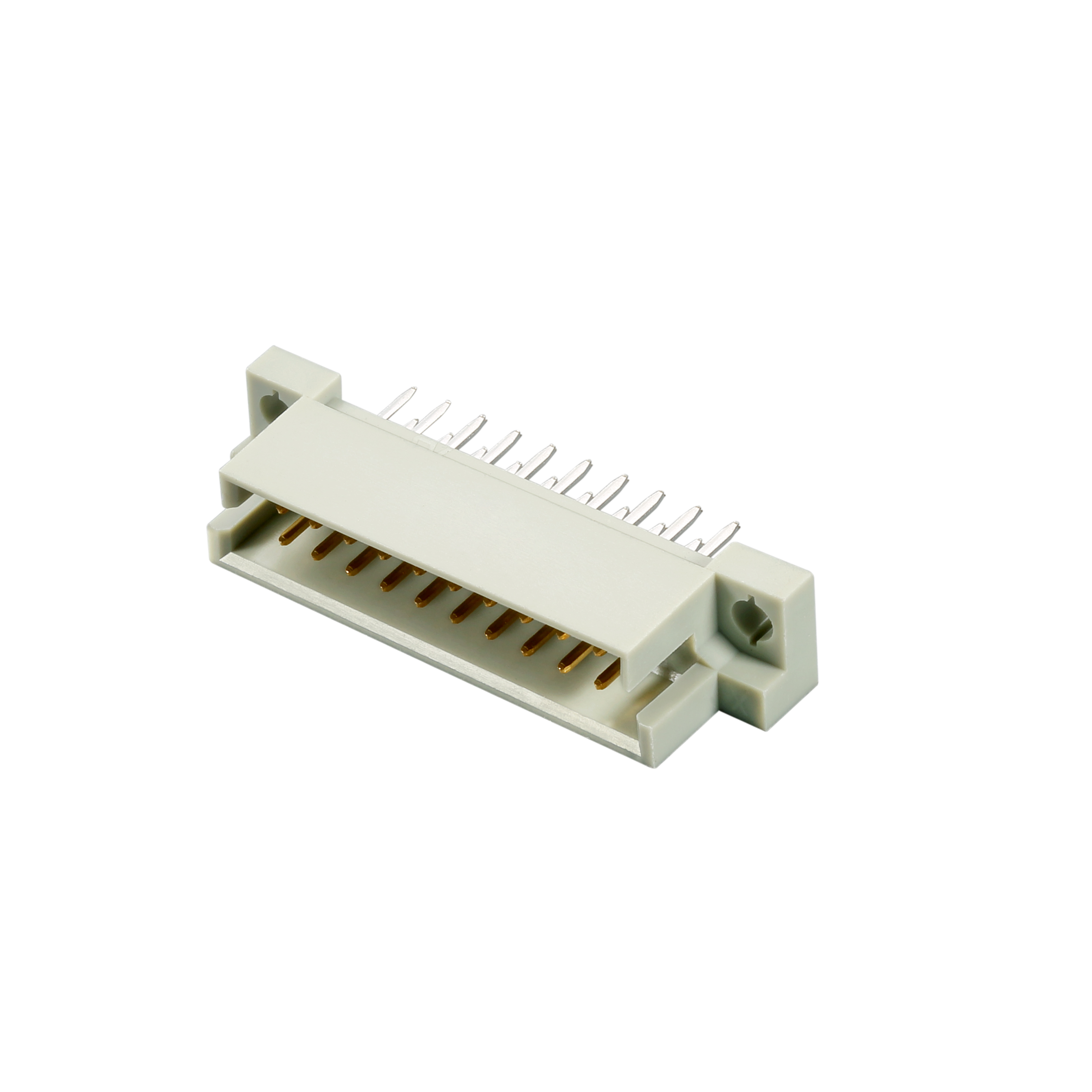

PH2.54mm DIN 41612 Male Dual-row Straight Type

PH2.54mm DIN 41612 Male Dual-row Straight Type

Part No: L495XX-XXXXX
Mating:L496XX-XXXXX
Packing:Tray
Delivery time:7~15 Day
UL:Yes
ROHS Compliant

Inquire Now None

product details

2D(PDF) Drawing

Specifications:

Current Rating	3.0AMP
Contact Resistance	30mΩ Max
Withstand Voltage	1000V AC/DC
Insulation Resistance	1000mΩ
Operation Temperature	﹣55℃ to +105℃
Contact Material	Brass
Contact Plating	Au And Sn over Ni
Fixing Material	Phosphor Bronze
Fixing Plating	Sn over Ni
Housing Material	PBT+30%GF(UL94V-0)
Cover Material	PBT+30%GF(UL94V-0)
