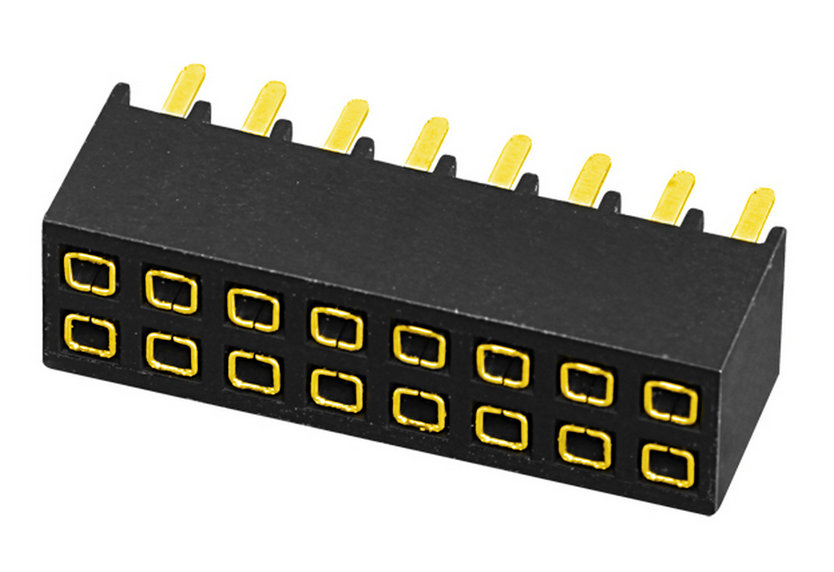

PH2.54mm H=6.8, 8.5mm Female Header Dual Row O-type Straight Type Female Connector

Part No: L308XX-XX0XXXXX
Mating:L208XX
Packing:Tube,Tray
Delivery time:7~5 Day
UL:Yes
ROHS Compliant

Inquire Now Next Product

product details

2D(PDF) Drawing

Specifications:

Current rating: 3A
Insulation resistance: 1000mΩ min
Dielectric withstanding voltage: AC 1000V
Contact resistance: 20mΩ max
Operating temperature: -40°C to +105°C
Contact material: brass
Insulation material: NY9T
Plated: Au over Ni
