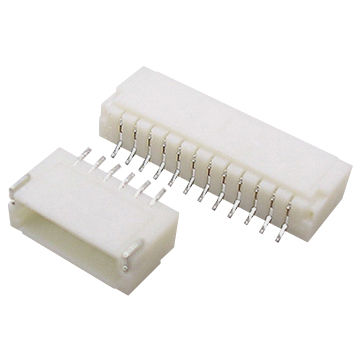

PH1.0mm Wafer, Single Row, Horizontal SMT Type Wafer Connectors

Part No: L101XX-13X0XXX
Mating:
Packing:Reel
Delivery time:7~15 Day
UL: Yes
ROHS Compliant

Inquire Now None

product details

2D(PDF) Drawing

Specifications:

Rating current: 1.0AMP AC/DC
Rated voltage: 100V AC/DC
Contact resistance: 20mΩ max
Withstand voltage: 250V AC/minute
Insulation resistance: 100mΩ min
Operation temperature: -25°C to + 85°C
Contact material: Brass
Contact plating: Au or Sn over Ni
Insulator material: PA9T+30%GF (UL94V-0)
